Need Help Sim Dash


RacerAlex
(@raceralex)
Active Member
Joined: 6 months ago
Posts: 14
Topic starter

I'm trying to get a working oil pressure gauge and a working weight jacker display on two custom dsahes I'm making for iRacing.  I can't seem to find the correct NCalc formula for either of these.  Can anyone point me in the right direction (or tell me it can't be done so I'll stop digging - LOL)?


Quote
Romainrob
(@romainrob)
Trusted Member
Joined: 1 year ago
Posts: 90


Hi,
This is possible as the data is available.

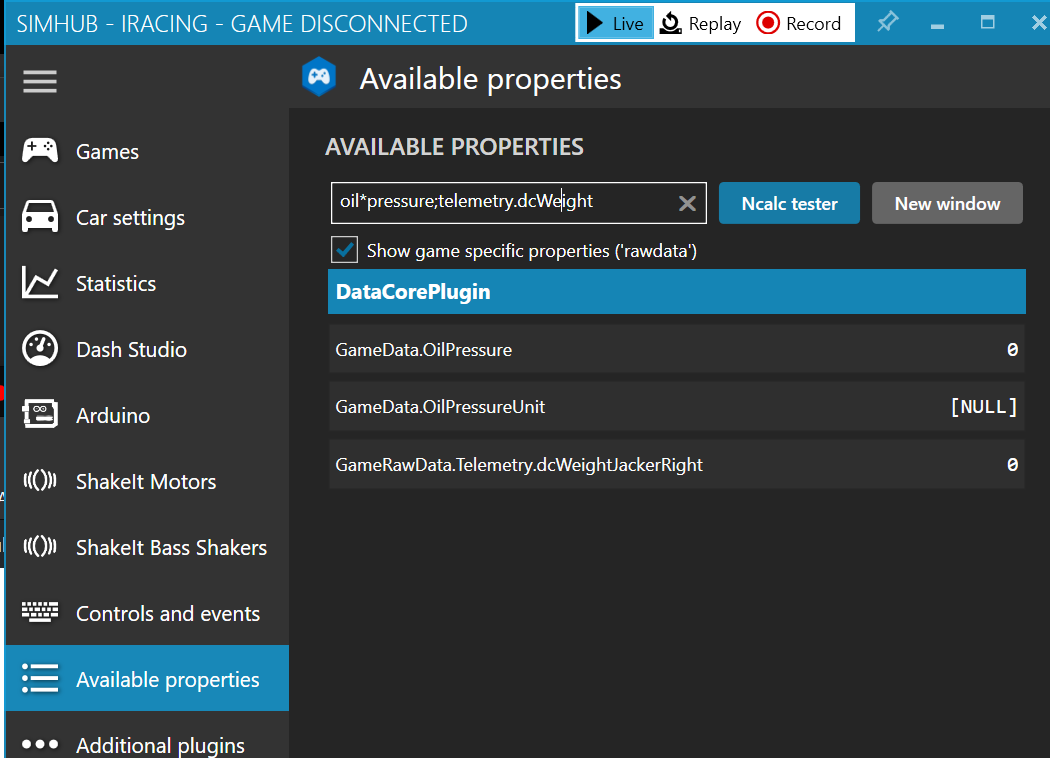

You find it in the property list. See attachement.

You'll have to bind the properties to some Dash Studio gauge and text components: https://github.com/SHWotever/SimHub/wiki/Dash-Studio---Bindings

For the gauge bind the pressure property as value and set arbitrary min and max values.

If you want to learn more about NCalc, have a look here : https://github.com/SHWotever/SimHub/wiki/NCalc-scripting---Introduction






ReplyQuote
RacerAlex
(@raceralex)
Active Member
Joined: 6 months ago
Posts: 14
Topic starter

Thanks.  This is very helpful!


ReplyQuote
RacerAlex
(@raceralex)
Active Member
Joined: 6 months ago
Posts: 14
Topic starter

Weight-jacker formula: [GameRawData.Telemetry.dcWeightJackerRight]






ReplyQuote
RacerAlex
(@raceralex)
Active Member
Joined: 6 months ago
Posts: 14
Topic starter

Here's the Ncalc formula for oil pressure (converting BAR to PSI).



[GameRawData.Telemetry.OilPress] * 14.504


ReplyQuote
