DIY Wind sim with Arduino Uno Rev 3 and Arduino Motor Shield Rev 3

106 Posts
30 Users
8 Reactions
29 K Views
(@jim54230)
Eminent Member
Joined: 2 years ago
Posts: 24


@micka35

Non pas obligé de faire tourner à 100%. Je voulais juste montrer la différence d'efficacité entre les 2 entonnoirs.



ReplyQuote
(@micka35)
Active Member
Joined: 1 year ago
Posts: 5


@jim54230 J'avais bien compris 😉

On peut donc garder un truc relativement discret qui souffle un peu, je commence vraiment à y croire, MD10 et arduino uno rev3 commandé !

Quel prix voudrais-tu pour me faire deux de ces réducteurs ? Je suis en pour parler avec une personne de mon boulot qui pourrait me les faire, mais rien de sûr...

This post was modified 1 year ago 2 times by Micka35


ReplyQuote
(@jim54230)
Eminent Member
Joined: 2 years ago
Posts: 24


@micka35 Bonjour,

Votre projet avance ? Votre collègue vous les a imprimées ?



ReplyQuote
(@bboots)
New Member
Joined: 1 year ago
Posts: 1


Hey Everyone,

Has anyone had the issue of the buzzing/wining noise that the fan makes. Ive seen on Boosted Medias video as well as other posts that it has to do with the frequency. However there is no option to change the frequency in the SHAKEIT PWM Outputs.

Any ideas? The buzzing is almost unbearable

Thanks



ReplyQuote
(@ivano74)
New Member
Joined: 1 year ago
Posts: 1


Hello everyone, just new to this forum.

I've built my RIG and put on a wind simulator following this nice guide.

Used an Arduino Uno Rev3 board in couple with a Cytron MDD10 motor board.

2 EZDIY fans all powered by a 12v 10A power supply.

Everything works fine but there's a little issue. After first 12 minutes, fans stop working and start again after 30/40 secs. Then they stop again after 6 minutes for other 30/40 secs and go on till the stop every 2/3 minutes.

Thinking of a high amount of heat, I cut a hole on the box that hosts the electronics and mounted on a 40mm fan powered by the arduino board (connected it to 5V and GND pins) that starts working as soon as the pc powers up.

Have someone of you had the same issue?



ReplyQuote
(@micka35)
Active Member
Joined: 1 year ago
Posts: 5


@jim54230 Bonjour, toutes mes excuses pour le retard, oui j'ai pu me procurer ces fameux cônes, cela dit j'ai maintenant un autre problème !

@BBoots I have exactly the same problem as you, on all the fans I plug in I get a little whistling sound.
Yours seems more intense because mine is still acceptable, but I don't want to use my system like that.
I'll try another power supply and see.

At first, I used the fans recommended in the main topic, but they're much too noisy for me, who just wants a continuous trickle of air.

Has anyone made a box for the arduino UNO and an MD10 module?
I'm extremely bad at 3D modeling.

This post was modified 1 year ago by Micka35


ReplyQuote
(@clevelandbeemer)
New Member
Joined: 11 months ago
Posts: 1


Hi there! I have the same issue as BBoots with fan whine. It seems to be motor noise that only occurs below 100% power. The higher I increase the power, the lower the noise volume. To be crystal clear, I'm talking about the whining noise not the noise from air movement.

I'm using 120x38mm Delta fans with the Uno + MD10 combo. The fans are 12V and 1.3A and the PSU is 12V 5A.

Any recommendations of what I can do to reduce/prevent the whine? I see the DK Motor Shield has a setting that says "change the pwm frequency to reduce humming." Unfortunately I don't see any such option for SHAKEIT PWM Outputs



ReplyQuote
(@legocy)
New Member
Joined: 11 months ago
Posts: 1


@gazzip Hi, how did you find out to use the jumper to D3? Is there a schematic you were able to look at for this? I did the same thing and you helped me finally get it to work but i want to learn why you had to jump it to d3



ReplyQuote
(@rinki)
New Member
Joined: 10 months ago
Posts: 2


Hello,
I'm new to this wind simulator topic. The qurestion I would liek to raise here is about the fans. What is your recommendation for those fans. Do I really need a 200CFM fan? What is a good compromise in terms of noise and performance? Personally I would prefer a bequiet! Silent Wings Pro 4. But I'm pretty sure that one is not powerfull enough.

Many thanks for your help!

Cheers,
Rinki

This post was modified 10 months ago 3 times by Rinki


ReplyQuote
(@rinki)
New Member
Joined: 10 months ago
Posts: 2

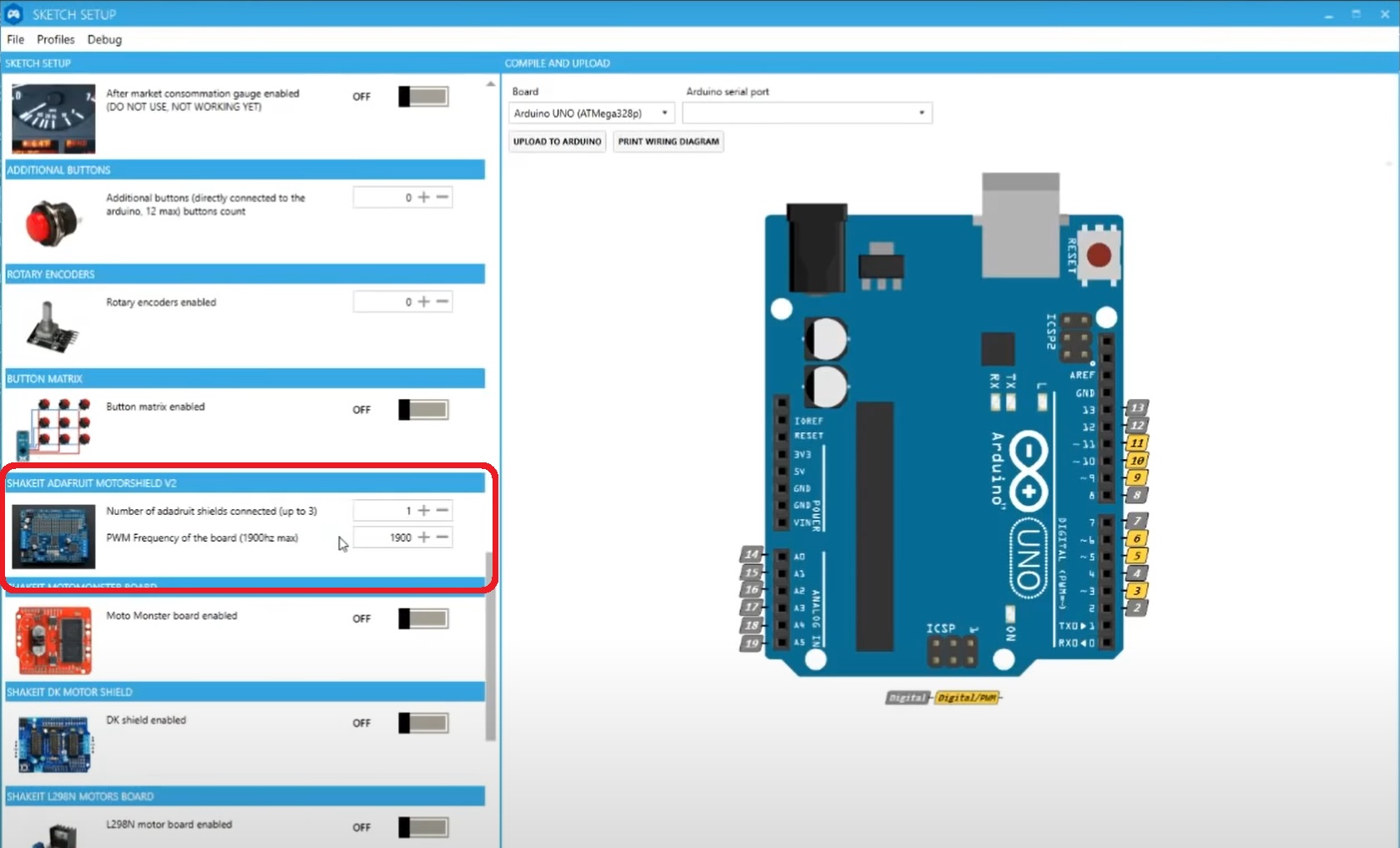

@clevelandbeemer I had a similar issue with another fan. Did you try to change the PWM frequency. I increased it to 1.900. Maybe that helps for you as well. But again, I'm new in this topic so I'm just sharing my experiences.
You will find this setting in the setup section of the software.

This post was modified 10 months ago 4 times by Rinki


ReplyQuote
(@taclile101)
New Member
Joined: 1 year ago
Posts: 1


@gazzip

Hi Gaz, hope you could help!?

I have all the same components as Day VReamer apart from the motor shield.  I have the MDD10 like yourself.

Do I need to cut the strip underneath where it says 'cut to turn off 5v output in order for it to work properly?

I'm new to this and really don't want to wreck everything before I've even started.🤣

Many thanks, Grant.



ReplyQuote
(@sebekonne)
New Member
Joined: 4 months ago
Posts: 2

Hello, I have a problem when I try to get a fan to work properly for the wind sim project.

I have a 4500rpm fan but I can't get any air through the duct. When I put my hand on the fan, it pulls too much air back and doesn't get it fully into the duct. If I do the test without a duct it flows a lot of air in correct direction

Thanks for all
This post was modified 4 months ago by Sebekonne


ReplyQuote
 Jero
(@jero)
New Member
Joined: 3 months ago
Posts: 2


I can’t get this wind sim to work

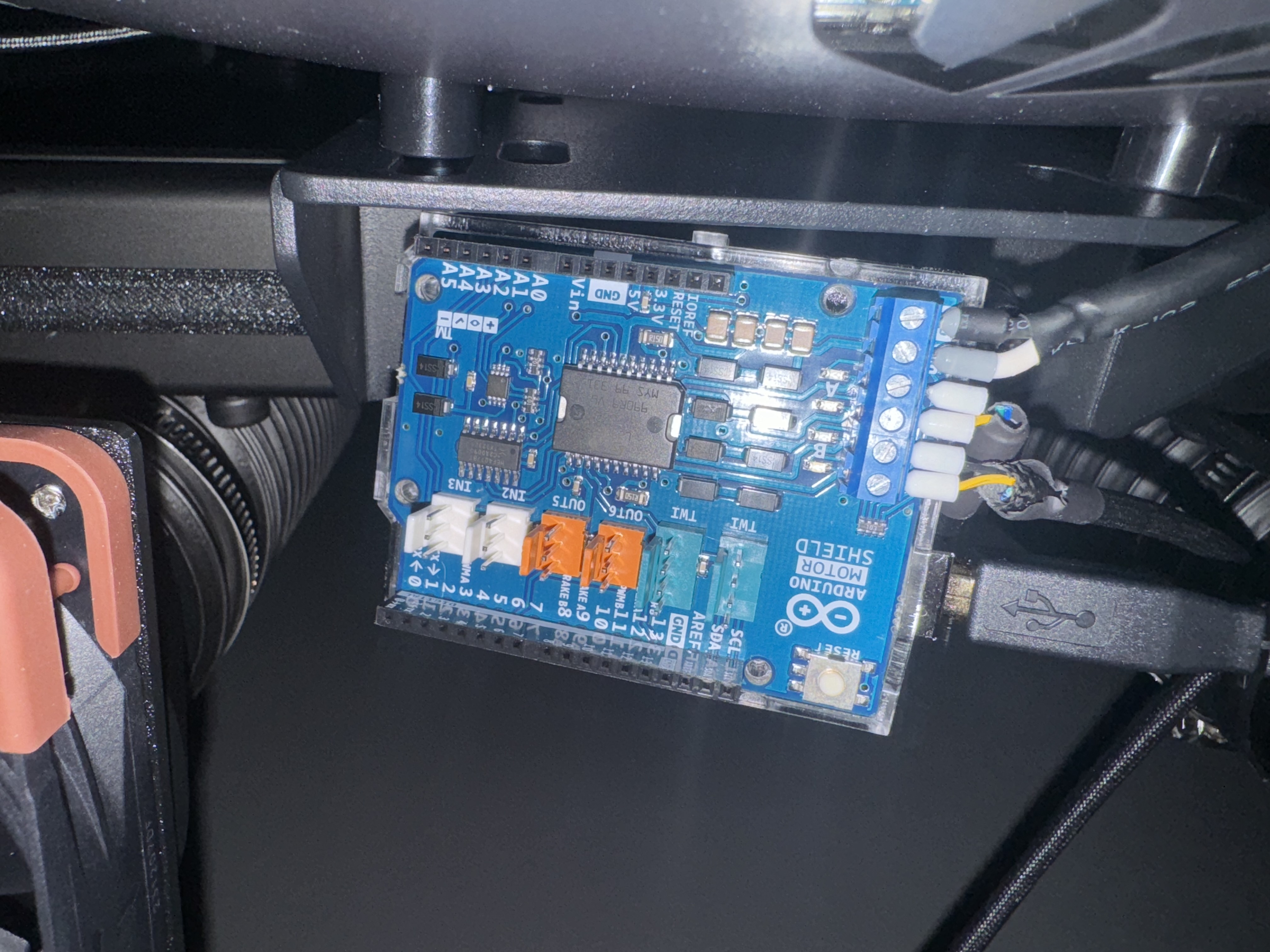

im using arduino uno rev3 and motor shield rev3

Have two Noctua NF-F12 iPPC 3000 PWM

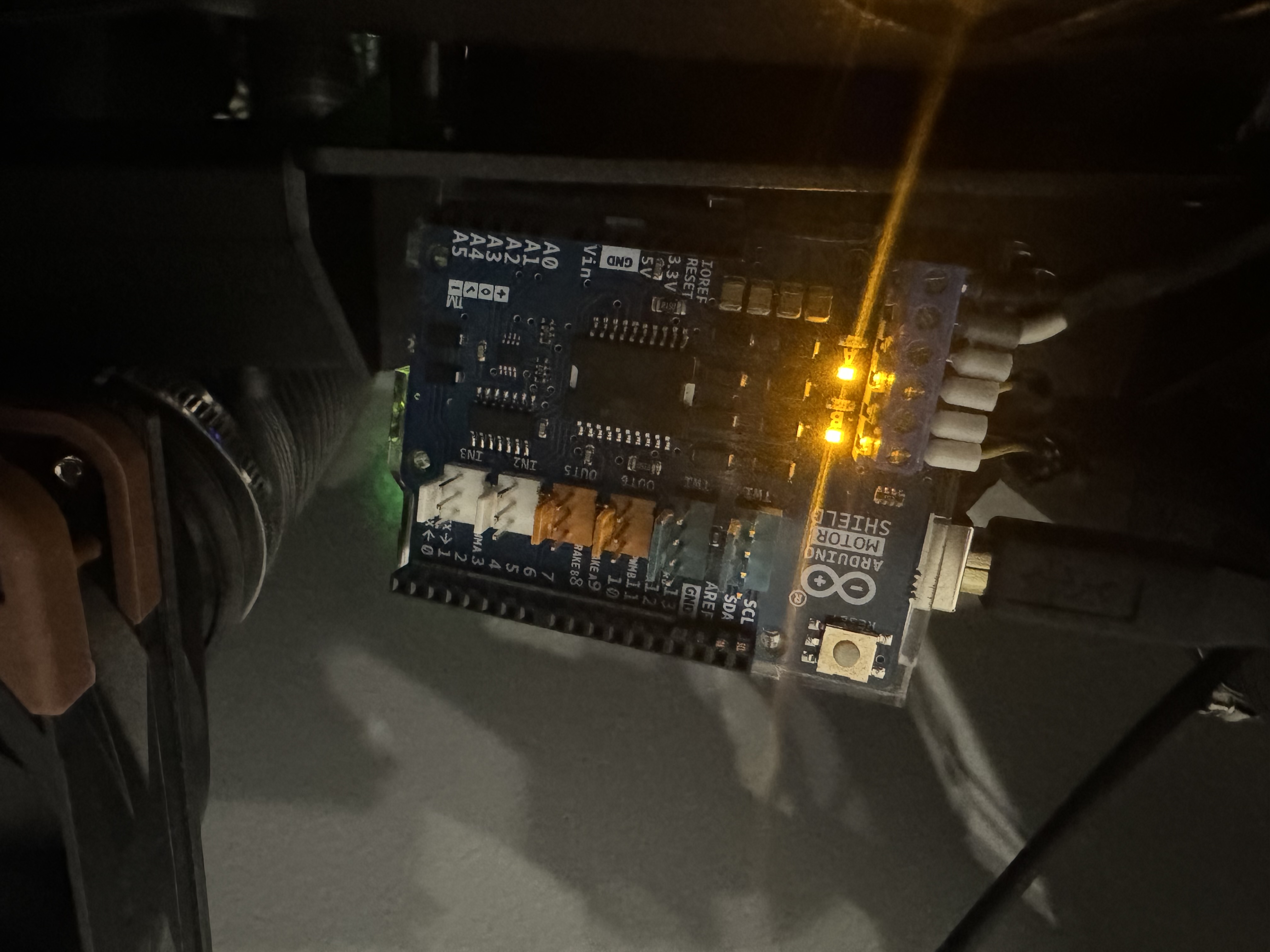

I get the fans to kinda click or jerk as if it’s not getting enough power and I see some lights on my motor shield. Tried 12v 1.5a , 6a, 7.5a all with the same results. Any ideas?

https://imgur.com/a/18el2eC

This post was modified 3 months ago 3 times by Jero


ReplyQuote
(@jblondin)
New Member
Joined: 2 years ago
Posts: 4


@clevelandbeemer did you ever find a solution to this?  I have the exact same issue...I have just tried two noctua 2000 rpm fans to see if it was an issue with the fan specifically...and its not.  Same issue, its like a coil whine at the fans at any rpm under 100%.  I dont see any setting anywhere to change.



ReplyQuote
(@jblondin)
New Member
Joined: 2 years ago
Posts: 4


@sebekonne see my and other posts above...you need a flow straightener to get the best results.  The problem with the ducting is that the air is turning corners and bouncing down the tube.  When it gets to the end, its swirling and not directional.  you need a nozzle (flow straightener at the beginning and end of the tube) to get the best results



ReplyQuote
