Linear gauge to show only positive or negative values

  RSS

Mark L
(@mark-l)
Active Member
Joined: 2 months ago
Posts: 7
05/08/2020 1:19 pm

I'm trying to create a gauge that takes positive and negative data (FFB) from rF2, but I only want to show the negative values. The bar should start at the bottom when the data is 0, rise as the data goes negative towards -100, then fall as data moves back towards 0. Anyone have a solution please? Documentation is very lacking in how to do something like this.



Thanks.


Quote
Wotever
(@admin5435)
Member Admin
Joined: 3 years ago
Posts: 335
05/08/2020 2:13 pm

Hi !

You simply need to set the "minimum" to -100 (this is the value triggering the gauge minimum) and "maximum" to 100 (this is the value triggering the gauge maximum) :



Nicolas


ReplyQuote
Mark L
(@mark-l)
Active Member
Joined: 2 months ago
Posts: 7
05/08/2020 3:07 pm

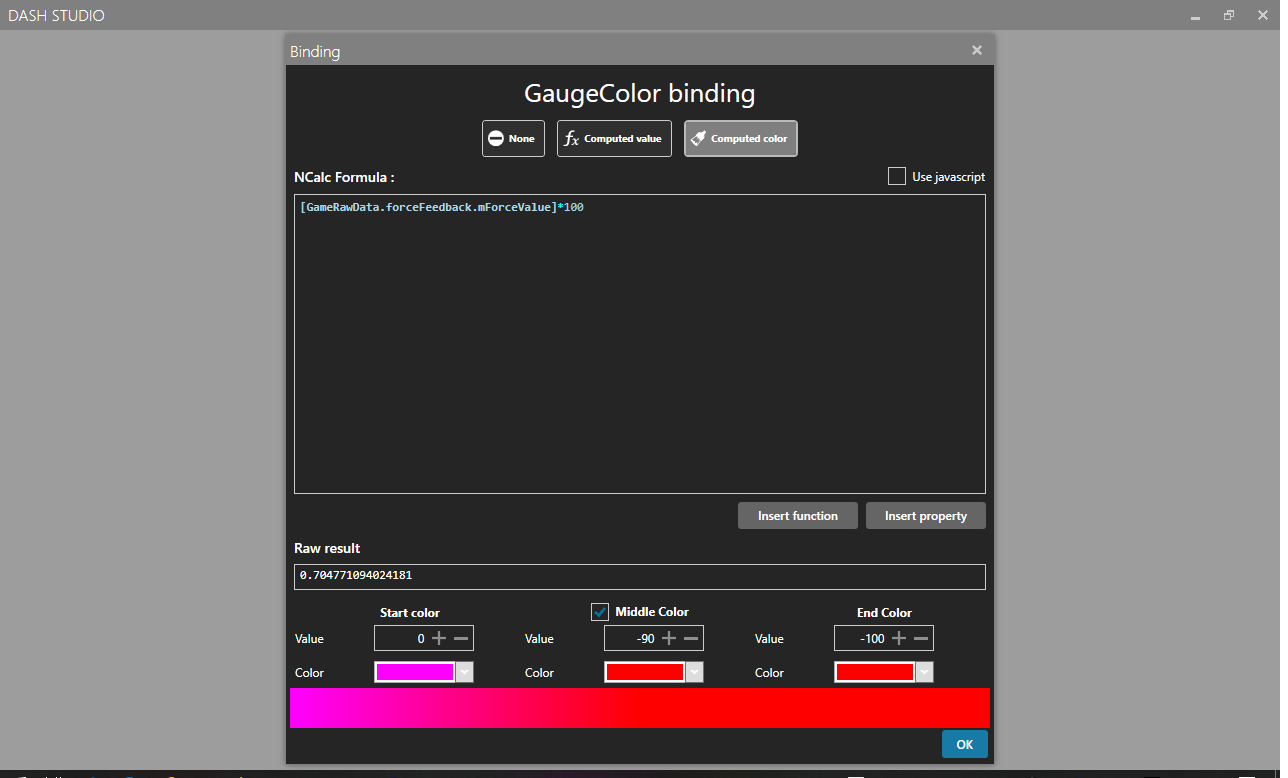

Thanks. I've now got that far but can't get the bar to change colour. It's staying solid purple in-game when I have it set to change like this:

This post was modified 2 months ago by Mark L

ReplyQuote
Mark L
(@mark-l)
Active Member
Joined: 2 months ago
Posts: 7
05/08/2020 6:46 pm

Forget that, I fixed it, it's working now.
