Clarifications of Arduino 20x4 or 16x2 I2C LCD multiple screen

  RSS

thundertrucks
(@thundertrucks)
Active Member
Joined: 1 month ago
Posts: 12
19/11/2020 3:31 pm

Hi at all,

My configuration is composite of three Arduino (1 Arduino Uno, 2 Arduino Mega 2560) for the games ATS and ETS2, at the Arduino Uno I have connected a LCD 20x4 with IC2.This LCD I use for information type PSI, Temperature, Time Sleep and other information.

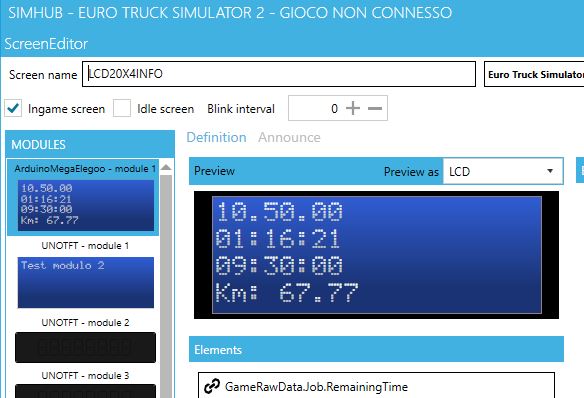

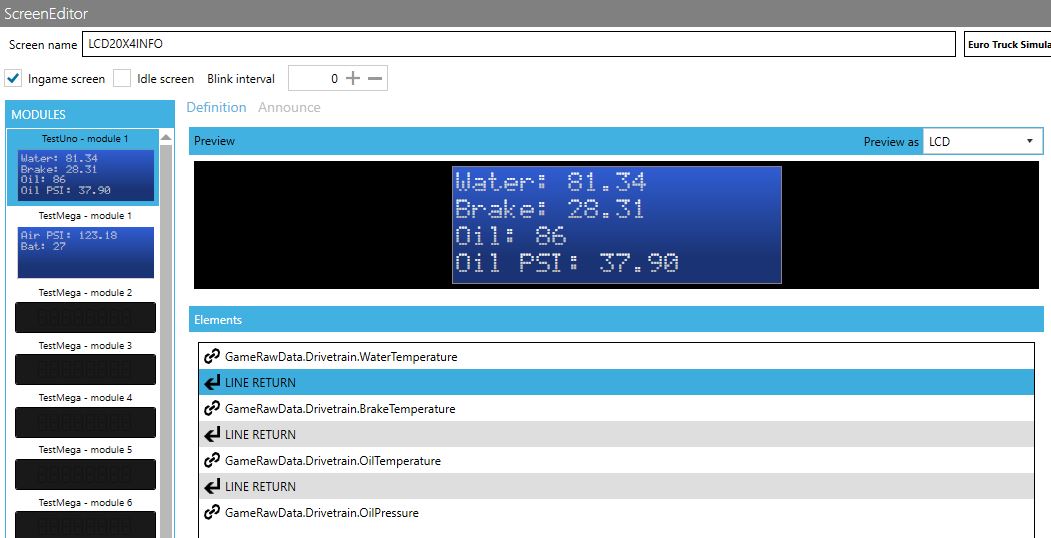

I have configurate the LCD (attached image) and configured the button of keyboard (I have activate the plugin) but not see next screen because the second module of LCD is setting at Arduino Mega.

What am I doing wrong?

Thanks in advance

Best regards

Claudio


Quote
thundertrucks
(@thundertrucks)
Active Member
Joined: 1 month ago
Posts: 12
23/11/2020 8:47 am

Hi,
I have understood how to.
I did not understand that the option into multiple configuration it referred at the quantity of modules associated at the Arduino board.
Thanks
Best regards
Claudio


ReplyQuote
thundertrucks
(@thundertrucks)
Active Member
Joined: 1 month ago
Posts: 12
23/11/2020 9:21 am

Hi,
Not saved the modify into configuration.

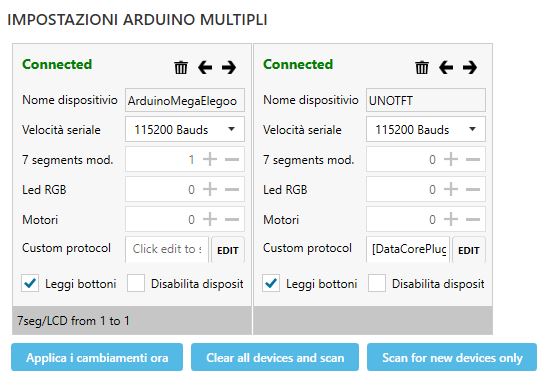

With Arduino board connected I have try click into button "Applay Changes", change the field "7 segment mod." to value 2, and when the board is reconnected the value came back 1.
I have try also deconncted the board, I have change the field at value 2, clicked up button "Applay change", reconnected the board but the field came back to value 1.
What am I doing wrong?
Thanks
Best regards


ReplyQuote
